Name: Wallbox EVLINK PRO AC 22kW, T2S socket, MID, NFC/RFID Reader
Brand: Schneider
SKU: 23786752
Price: 1549 CHF
Availability: InStock

isSSR

offer

olderThan3MonthTimestamp

path

sectorId

shopArea

slug

tagIds

productDetailPageQuery

productBySlug

alternateLinks

dutchAuctionBannerLazy

alternateLinksByPath

currentAuctionEvent

Zurich

Lausanne

Basel

Kriens

Winterthur

Bern

Dietikon

Geneva

Wohlen

St. Gallen

Schneider

EVlink Pro AC Wallbox with Type 2 socket and shutters. Designed for use in semi-public garages or parking lots, suitable for indoor or outdoor wall installation, on the EVlink pole, or in the metal kit. Mode 3 charging according to IEC 61851-1, 3-phase with a maximum charging power of 22 kW, Type 2 socket. Equipped with an integrated 3-phase MID meter and a Type B-EV residual current device as a separate component included in the delivery. Digital inputs: 1 for temporary power limitation, 1 for delayed/suspended charging, 1 for EV presence detection. Access control via NFC/RFID reader. NFC reader 13.56 MHz compatible with Type 1, 2, 4, and 5 badges; RFID reader complies with ISO/IEC 14443 A & B and ISO/IEC 15693 protocols, compatible with Mifare Ultralight, Mifare Classic, Mifare Plus. User information and status indication via a clearly visible LED arc, commissioning of the wallbox via eSetup app via Bluetooth. Communication standards: Bluetooth, Ethernet 2 ports (1 for Daisy Chain), Modbus serial, Modbus TCP, OCPP 1.6J for connection to a backend as well as the load management system EcoStruxure EV Charging Expert. Optional accessories: Wi-Fi module, modem module, ISO 15118 module, pluggable on the charging controller. Color of the charging station: Housing: Dark gray RAL 7016 and Black RAL 9005, front cover: White RAL 9003. Dimensions WxHxD: 317x529x153 mm, weight: 7.5 kg, material: UV-treated polycarbonate. Impact resistance IK10, protection class IP55, operating temperature -30 to 50 °C, storage temperature -40 to 80 °C, maximum operating altitude 2000 m without derating, relative humidity 5 to 95%, self-consumption <10 W. Earthing system: TT, TN(S) or TN(C)(S), IT compatible with additional isolation transformer in the power supply. Norms and standards: CE, E.V. Ready, IEC/EN 61851-1 Ed 3.0, IEC/EN 62196-1 Ed 2.0, IEC/EN 62196-2 Ed 1.0, EN 61000-6-2: 2019, EN 61000-6-3: 2007 + A1: 2011, IEC 60884-1 and NF-C 61314.

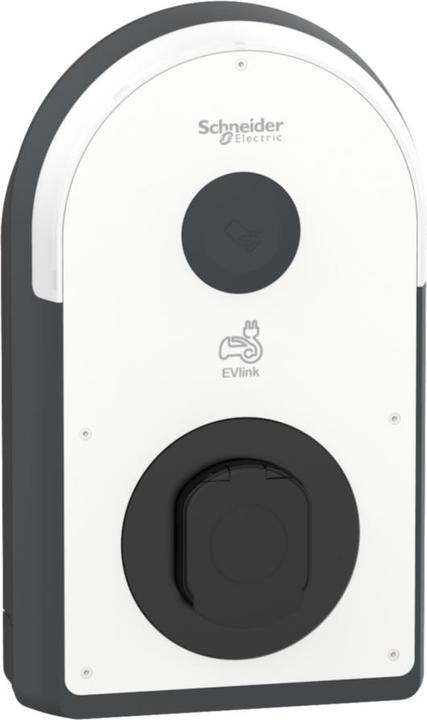

Actual product image Schneider Wallbox EVLINK PRO AC 22kW, T2S socket, MID, NFC/RFID Reader (Type 2, 22 kW)
