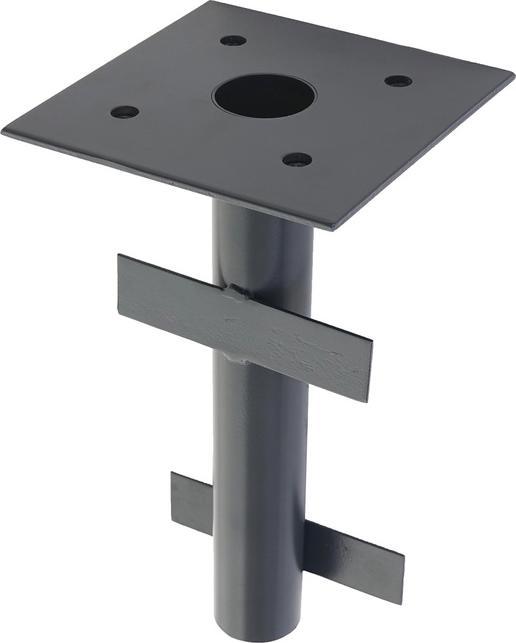

Mendler Ground sleeve for luxury traffic light umbrellas, ground anchor umbrella stand 35x19x19cm - 107320

• Scope of delivery: 1x ground socket for parasols

• Especially for gastronomy luxury traffic light parasol

• Simple screwing on of the turntable or base plate

• Also suitable for round poles with diameters up to 49 mm (flagpole, rotary clothes dryer etc.)

• No tripping edge

• Space saving

• Unobtrusive

• Ground level finish

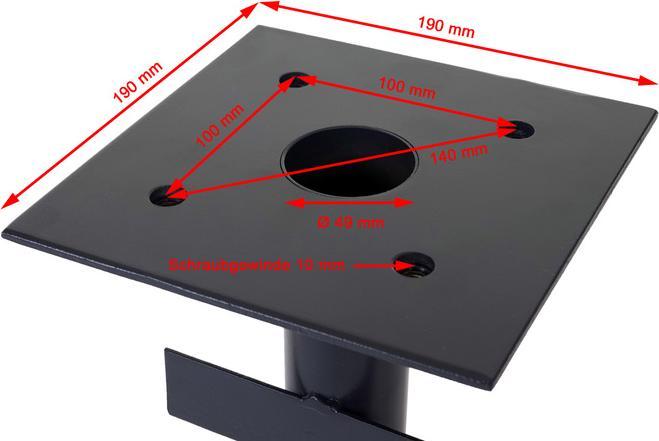

Mass (approx.):

• Height: 35 cm

• Width: 19 cm

• Depth: 19 cm

• Tube Ø: 49 mm

• Mounting plate thickness: 5 mm

• 4 holes, hole spacing: 100 mm

• Drill hole diagonal: 140 mm

• Screw thread: 10 mm

• Weight: 2.6 kg

An umbrella stand takes up a lot of space on the terrace and quickly becomes a tripping hazard. With our ground socket, we offer you the advantage of inconspicuousness and it also increases the usable area under the parasol.

We recommend the most stable way of anchoring the parasol, setting it in concrete. Methods of hammering in and screwing in ground sockets cannot compete with this in terms of stability. If a suitable and long-term location for your parasol has been determined, a ground socket with a ground foundation is preferable. This is especially true in windy locations. And should wind be sown and storm reaped, we fear for your parasol, not for our ground sleeve.

Note on application:
When excavating the square concrete foundation, the frost depth as well as the width of at least 40 cm should be observed. The concrete should harden for approx. 2 days.
Simply screw on the external turntable or umbrella pole with the ground sleeve (see illustrations).

Please observe:
Photos in use with parasol are also shown. The parasol is not part of the scope of delivery.

Illustration examples:

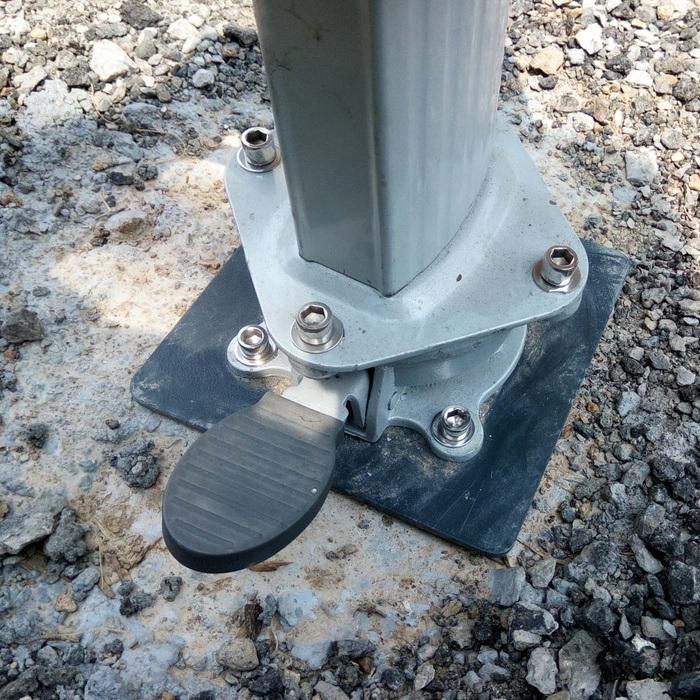

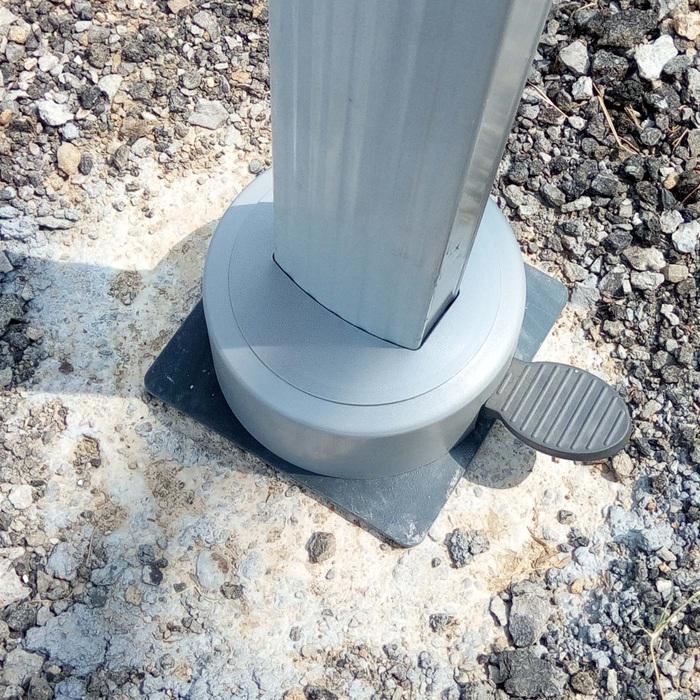

Ground socket set in concrete and parasol with turntable:.
