Markmüller BAMATO - Tischkreissäge BTS-250PRO, 400V

BAMATO Table Saw BTS-250PRO (400V)

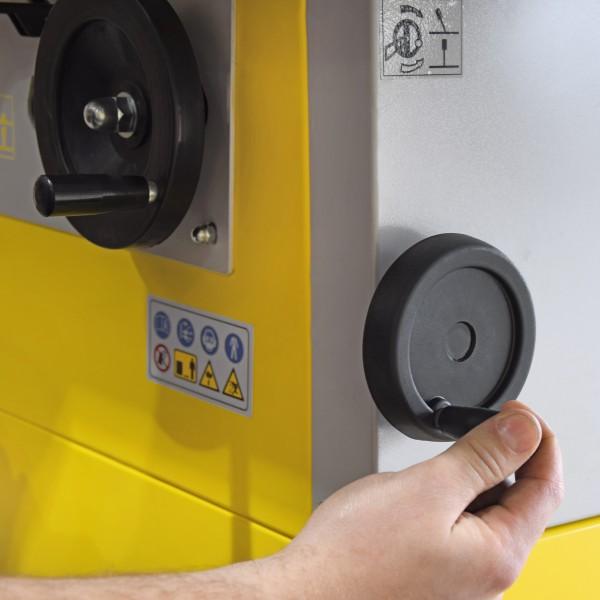

The BAMATO table saw from the BTS-250PRO series is equipped with a stable parallel guide that runs on a high-quality guide rail. Together with the solid cast table, it delivers perfect cutting results. For optimal user comfort, the saw blade can be adjusted in height and tilt up to 45° using handwheels and a scale. The sliding table is also made of solid cast and features an angle-adjustable stop rail with a hold-down.

• Solid cast table for vibration-free operation
• Table extension for cutting widths up to 700 mm at the parallel guide
• Powerful and high-performance motor

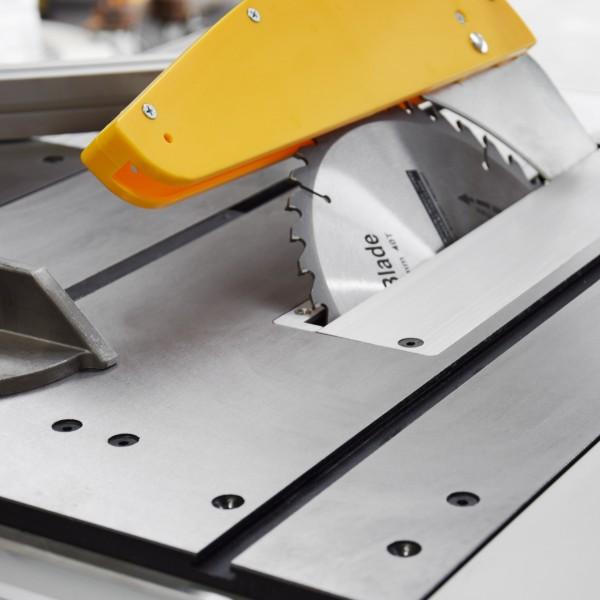

• Height-adjustable and swiveling saw blade with Ø 254 mm
• Central 100 mm dust extraction connection and saw blade guard with dust extraction connection
• Sliding table with angle-adjustable stop rail and hold-down

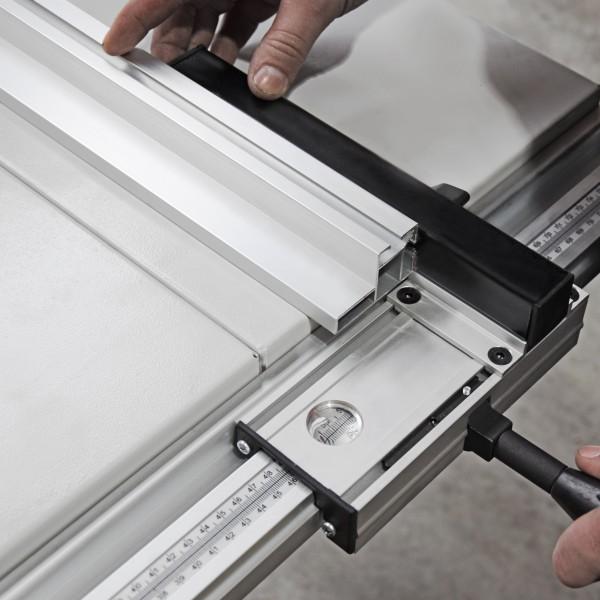

• Stable parallel guide on a high-quality guide rail
• Comfortable working height of 850 mm

Includes XXL delivery contents:

• 254 mm HM saw blade with 40 teeth
• Short cross and miter stop
• Stop rail with hold-down
• Guard with dust extraction connection
• Stable machine base

Technical Data:
General Data:

• Net Weight: 105 kg
• Gross Weight: 119 kg

Motor Data:

• Motor Power S1: 2200 Watts
• Motor Power S6: 3100 Watts
• Voltage: 400V / 50 Hz

General Machine Dimensions:

• Table Size: 635 x 420 mm
• Table Height: 850 mm
• Table Extension: 2 x 635 x 290 mm
• Dust Extraction Connection: 100 / 30 mm (guard)
• Installation Dimensions: 1010 x 1440 x 1050 mm

Cutting Performance:

• Max. Cutting Height 90°: 80 mm
• Max. Cutting Height 45°: 65 mm
• Cutting Width with Parallel Guide: 700 mm

Saw Machine Details:

• Saw Blade / Bore: 254 / 30 mm
• Saw Blade Speed: 4000 min-1
• Saw Blade Swivel Range: 90° - 45°
• Number of Teeth: 40

Noise and Vibrations:

• Sound Pressure Level: 84.7 dB(A)

Shipping Details:

• Package 1: 1750 x 620 x 510 mm
• Package 2: 2740 x 450 x 200 mm
• Package 3: 1015 x 175 x 85 mm
• Shipping Weight: 119 kg.
