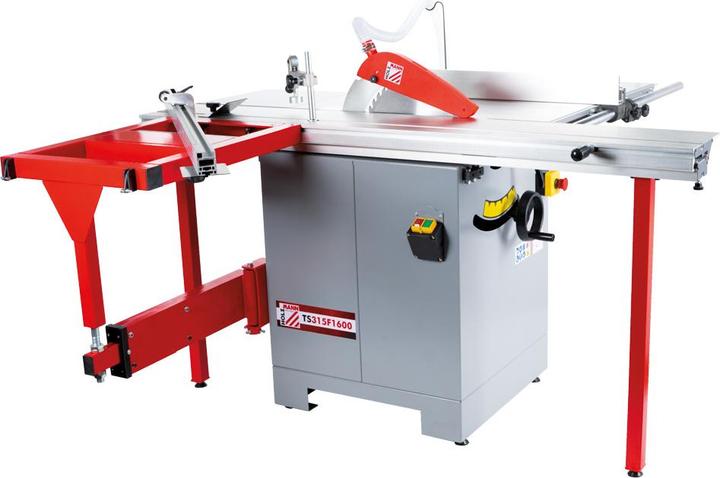

Holzmann TS315F1600 400V sliding table saw incl. moulding table

Holzmann TS315F1600 400V sliding table saw

Properties:

• Swiveling and height-adjustable circular saw blade
• 1600 mm long sliding table with support roller on the extension arm
• Saw blade with Ø315 mm enables a cutting height of up to 85 mm
• Stable and precisely guided rip fence
• Strong grey cast iron table for a long service life
• Table extension and table widening

Technical data:

• Voltage: 400V (a 400V connection is required)
• Power S1: 2800 watts
• Power S6: 3920 watts
• Table size: 800 x 365 mm
• Table height: 850 mm
• Table extension: 350 x 365 mm
• Table extension: 800 x 540 mm
• Sliding table: 238 x 1600 mm
• Suction connection: 100 mm
• Installation dimensions: 3000 x 3200 x 1200 mm
• Max. cutting height 90°: 85 mm
• Max. cutting height 45°: 60 mm
• Max. trimming length: 1400 mm
• Cutting width at rip fence: 900 mm
• Saw blade diameter: 315 mm
• Bore: 30 mm
• Saw blade speed: 4000 rpm
• Sound power level: 103 dB(A)
• Sound pressure level: 89.5 dB(A)
• Weight: 146.50 kg

Scope of delivery:

• Carbide circular saw blade Ø 315 mm
• Outrigger
• Table extension
• Table extension rip fence
• Telescopic outrigger fence
• Edging shoe
• Hold-down device
• Push stick and sliding timber

Please note: Electrical connection work/installations may only be carried out by qualified specialist personnel.
