Product details

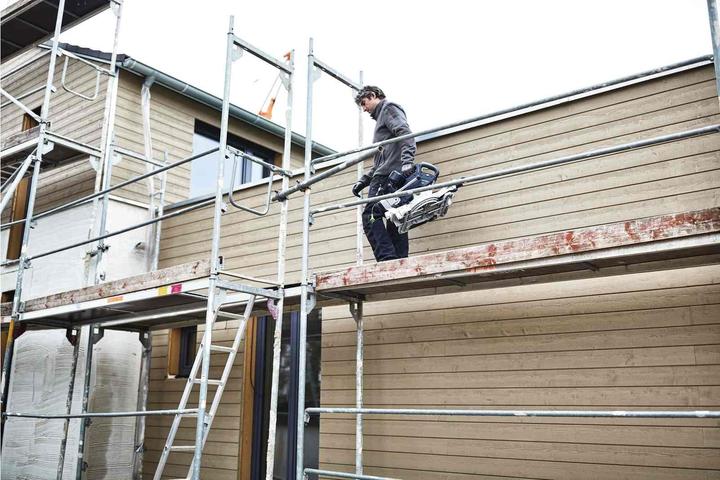

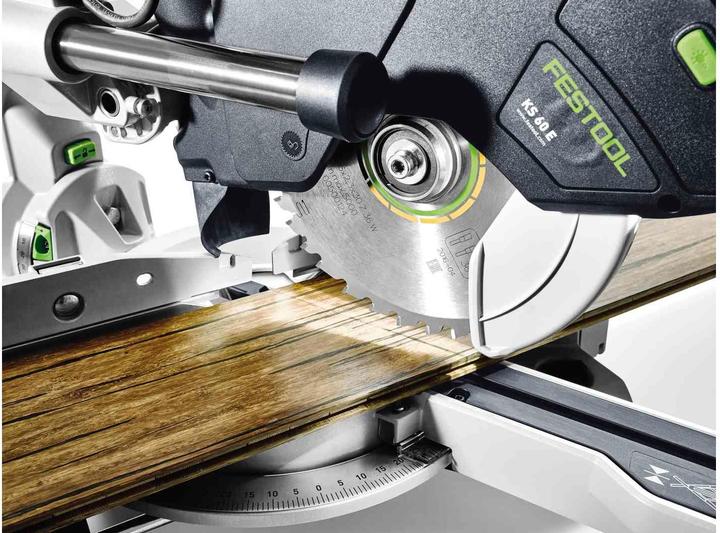

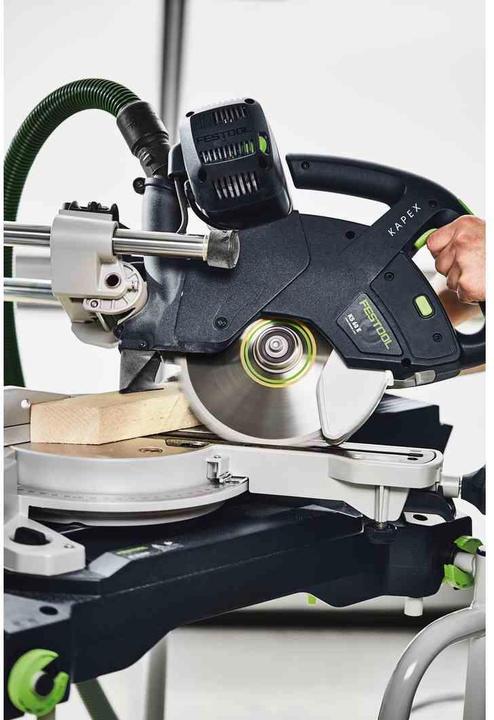

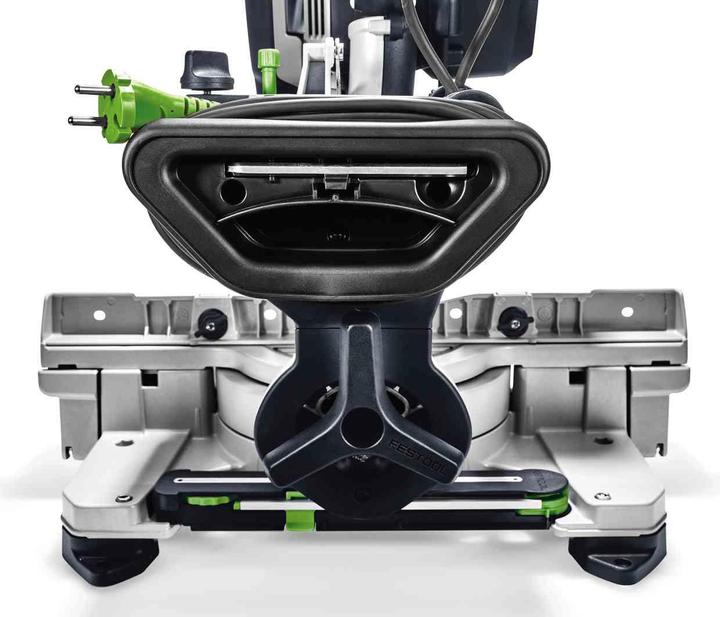

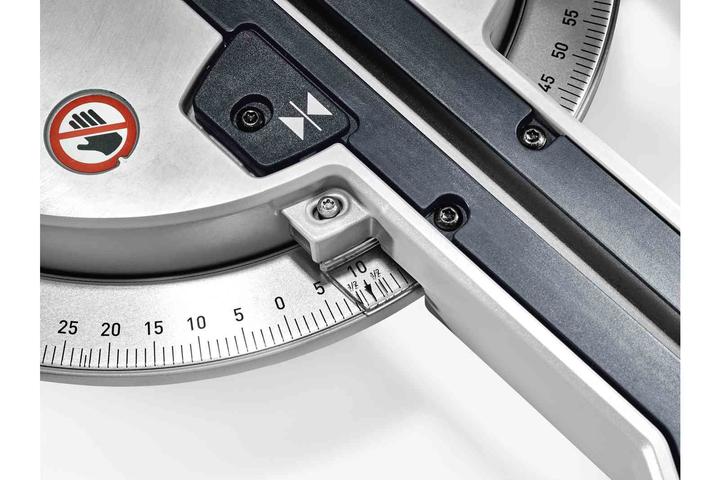

Compact, lightweight, with ergonomic carrying handles and cable winding. LED spotlight for precise cutting line indication (included in the set and available as an accessory). Angle gauge for transferring internal and external angles. Dual bevel angles of up to 47°/46° and dual miter angles of up to 60°. Even more mobile with the undercarriage: The UG-KAPEX undercarriage serves as both a stand and transport frame. Depth limiter for quickly creating grooves. For clean air and a healthy working environment: The dust extraction system works in combination with a Festool mobile dust extractor to remove dust at the source. Always work in a material-appropriate manner: The Festool saw blades are ideally matched to the KAPEX KS 60 and the materials. The new KAPEX KS 60 eliminates everything unnecessary for assembly, such as every gram of weight. It impresses with ergonomically arranged carrying handles, cable winding, transport safety, and an extremely compact design with flush-fitting guide rails. No compromises are made in terms of precision and application variety: with dual miter angles of up to 60 degrees and dual bevel angles of up to 46 or 47 degrees. The double-column guide with double bearings ensures safe and smooth guidance of the saw blade. Many other clever details, such as the LED spotlight, the extendable table extension, the additional groove function, or the angle gauge, complete the KAPEX KS 60 into the perfect combination of mobility, application variety, and excellent results. Circular saw blade WOOD UNIVERSAL HW 216x2.3x30 W36, clamping device FSZ 120, LED spotlight, angle gauge, height adjustment, hex key SW 6.
Festool Switzerland warranty all-inclusive
3 years warranty - registration on Festool CH website - registration deadline: 30 days after purchase. Only valid in Switzerland.Nominal diameter | 216 mm |
Max. depth of cut at 90° | 305 mm |
Mains voltage | 230 V |
Power | 1200 W |
Item number | 7778233 |
Manufacturer | Festool |
Category | Chop saw + mitre saw |
Manufacturer no. | 561694 |
Release date | 19.2.2018 |
Sales rank in Category Chop saw + mitre saw | 37 of 298 |
External links | |
May include power adapter | No |
Colour | Silver |
Exact colour description | Black, Green, Silver |
Max. tilt adjustment | 60° |
Nominal diameter | 216 mm |
Number of teeth | 36 |
Max. depth of cut at 90° | 305 mm |
Max. Depth of cut at 45 | 215 mm |
Power supply | Electrical connection |
Battery equipment | No batteries supplied |
Mains voltage | 230 V |
Cable length | 3.70 m |
Power | 1200 W |
Max. Idle speed | 3500 rpm |
Sound power level (LWA) | 100 dB |
Sound pressure level (LpA) | 91 dB |
Material group | Metal |
Material | Metal, Plastic |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |

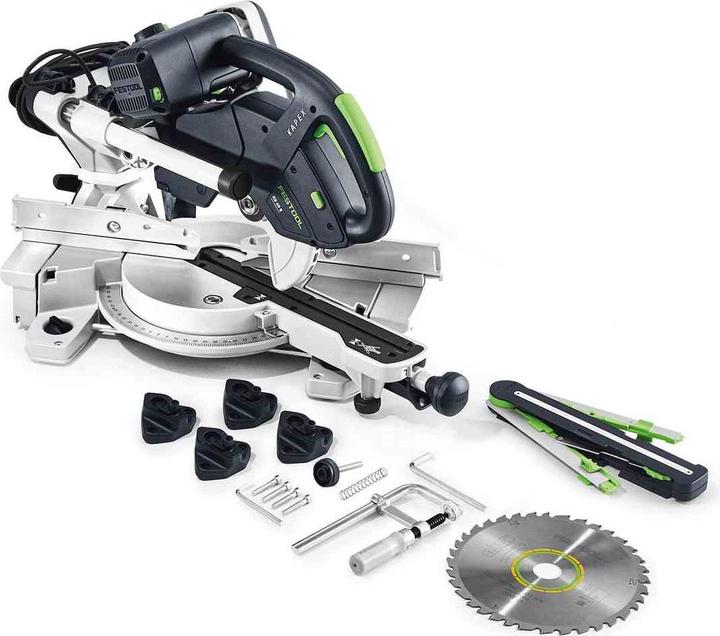

Scope of delivery | Allen key SW 6, Angle bevel, Circular saw blade WOOD UNIVERSAL HW 216x2.3x30 W36, screw clamp FSZ 120, Increase, LED headlight |
Length | 475 mm |
Width | 661 mm |
Height | 430 mm |
Weight | 17.90 kg |
Length | 75 cm |
Width | 54 cm |
Height | 48.50 cm |
Weight | 22 kg |
Specifications may include unverified machine translations.
