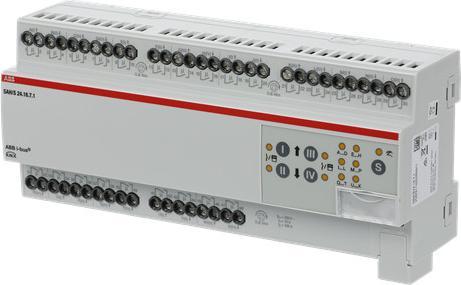

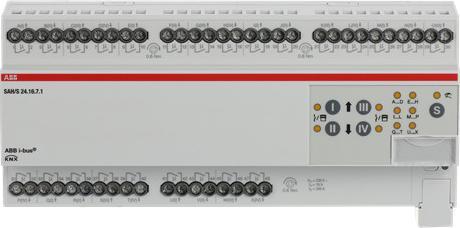

ABB Switching/shutter actuator

ABB Stotz S&J Switching/Shutter Actuator SAH/S24.16.7.1

Manufacturer: ABB Stotz S&J
Designation: Switching/Shutter Actuator 24-fold 16A
Type: SAH/S24.16.7.1
Bus System KNX: yes
Bus System KNX-RF: no
Bus System Radio Bus: no
Bus System LON: no
Bus System Powernet: no
Other Bus Systems: none
Bidirectional Radio: no
Mounting Type: REG
Width in Division Units: 12
Local/Manual Operation: yes
With LED Display: yes
Max. Switching Power: 1200 W
Max. Switching Power LED: 250 W
Output Power: 1200 W
Suitable for C-Load: no
Max. Number of Switching Outputs: 24
Max. Switching Current: 16 A
Rated Current: 16 A
Rated Operating Voltage: 230 V
Different Phases Connectable: yes
With Bus Coupling: yes
Bus Module Removable: no
Min. Depth of Device Box: 64.5 mm
Modular Expansion Option: no
Protection Class (IP): IP20

The 16A Combi Actuator features 24 independent switching relays, allowing for individual control of electrical consumers or paired 230V AC blinds via ABB i-bus®. Manual operation of the outputs is possible. The switching or movement state of the output is displayed. Manual operation of the device can be locked. It is a KNX device and does not require an additional power supply.
EAN: 4016779066860.
