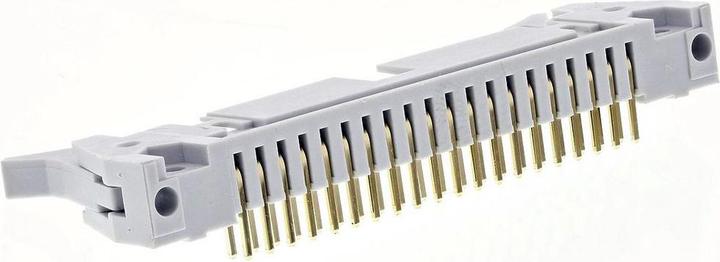

RS PRO 40 way universal r/a plug,55.37mm L

Number of contacts: 40
Gender: Male
Pitch: 2.54 mm
Mounting type: Through-hole mounting
Housing orientation: Right angle
Connection type: Soldering
Rated current: 1 A
Contact plating: Gold
Series: SCP
Operating temperature min.: -45 °C
Operating temperature max.: +105 °C
Contact material: Brass

Universal PCB header connectors and IDC flat ribbon cable socket strips with a 2.54 mm pitch. This series of PCB header connectors and IDC flat ribbon cable socket strips is compatible with connectors according to BS9525-F0023. The universal PCB pin headers and IDC socket strips in 2.54 mm feature gray housings made of glass fiber reinforced polyester in accordance with UL94V and gold-plated contacts and connections. The universal pin headers in 2.54 mm are fully shrouded and have long ejector levers on each side. The universal IDC flat ribbon cable socket strips in 2.54 mm do not have a centrally located polarization protection, feature an open design suitable for chaining, and are partially assembled with strain relief to facilitate cable insertion.
