Minisforum MS-01-S1390

Intel Core i9-13900H, 64 GB, 1000 GB, Intel Iris Graphics
8Ratings
BrandMore from Minisforum
tomorrow with flash delivery
the day after tomorrow with standard delivery
to check if flash delivery is available to you.

Total memory

Product details

The MS-01 is a MINI PC for office and production tasks. It is equipped with a 13th generation Intel high-performance processor and graphics card. Users can also add their own high-performance memory or solid state for processing large amounts of data and running complex software to meet the needs of professional users working efficiently in engineering, design and programming.The MS-01's sophisticated design is simple and practical, and it opens and closes quickly with a single push of a button.

Network speed

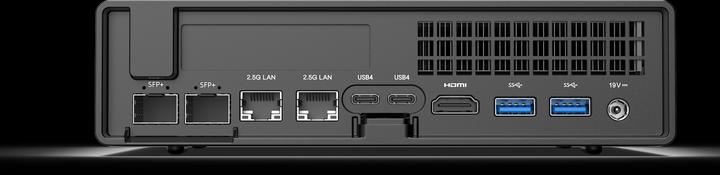

Network transmission speed of up to 65 Gbps in total: Dual 10Gbps SFP+ 10Gbps network ports with support for Eth-Trunk; Dual full-speed USB4 ports with simultaneous support for 20Gbps Thunderbolt Ethernet; Dual 2.5G RJ45 network ports + Intel® Ethernet controller I226-LM and 1226-V, 1226-LM supported for Windows Server.

Dual 2.5G RJ45 network ports
Dual USB4 ports
10GbE NIC port

13th generation processor
Intel CPUs - Intel® Core™ i9-13900H/12900H processor. 14 cores, 20 threads, 24 MB L3 cache and a power consumption of 45 W.
The i9-13900H has a maximum turbo clock frequency of 4.1 GHz for the Efficient cores and a maximum turbo clock frequency of 5.4 GHz for the Performance cores.

Supports up to 3* M.2 NVME SSD
Supports PCIE4.0 - up to 7000MB/s
Increase capacity - Raid0
Increase reliability - Raid1

Enterprise SSDs-Larger capacity
Supports up to:
1 x U.2 NVME SSD
2 x 22110 M.2 NVME SSD

Intel vPRO
With support for Intel vPRO, the I9 processor offers a range of security, remote management, virtualisation and productivity features tailored to the needs of enterprise users.
Intel AMT Remote Management enables remote control of KVM at the BIOS level. This eliminates the need to install remote control software, significantly increasing productivity and reducing the risk of malware.

Intel Core i9-13900H/12900H processor, Intel vPRO
64GB RAM + 1TB SSD
65 Gbps: Dual 10Gbps SFP+ 10Gbps network ports
3x solid state
2x 40G-USB4 ports
Standard PCIE connector
Windows 11 Pro pre-installed
Windows and Linux compatible

Key specifications

PC type
Mini PC
Processor family
Core i9 13th Gen
Graphics card model
Intel Iris Graphics
Operating System Version
Windows 11 Pro
Video connections
HDMI (1x)
Exact USB ports
USB-A 2.0 (2x),
USB-A 3.2 Gen 2 (2x),
USB-C 4 (2x)
Network connections
RJ45 2.5 Gigabit Ethernet (2x),
SFP+ (2x)
Item number
53359039

General information

Manufacturer
Category
Manufacturer no.
323606
Release date
5.12.2024
Sales rank in Category PC
May include power adapter
Yes

Colour

Colour group
Black
Exact colour description
Black

Application range

PC type
Mini PC

Operating system

Operating system
Windows
Operating System Version
Windows 11 Pro
Language
English,
French,
German,
Italian
Operating system architecture
64-bit

Processor

Number of processors
1 x
Processor family
Core i9 13th Gen
Processor type
Intel Core i9-13900H
Max. turbo clock rate
5.40 GHz
Number of processor cores
14 -Core
Number of performance cores
6 -Core
Max. Turbo Clock frequency Performance Cores
5.40 GHz
Number of efficiency cores
8 -Core
Max. Turbo Clock frequency Efficiency Cores
4.10 GHz
Number of threads
20
Cache
24 MB

Processor cooling properties

Processor cooling type
Air cooled

Memory

Total memory
64 GB
Max. supported memory
64 GB
RAM speed
5200 MHz
Memory form factor
SO-DIMM
Number of memory slots
2

Data storage overview

Disk type
SSD
Total capacity
1000 GB
Form factor
M.2

SSD properties

SSD capacity
1000 GB

Graphics properties

Graphics hardware
Integrated graphics

Onboard graphics properties

Graphics card model
Intel Iris Graphics

Dedicated graphics card properties

Graphics card model
Intel Iris Graphics

Network

Ethernet controller
Intel I226-LM,
Intel I226-V
Max. port speed
10000 Mbit/s

Wireless transmission

Wireless transmission
Bluetooth,
Wi-Fi
Bluetooth version
5.2

Wi-Fi

Wi-Fi standard
Wi-Fi 6E / 802.11az

Connections

USB ports
USB-A,
USB-C
Exact USB ports
USB-A 2.0 (2x),
USB-A 3.2 Gen 2 (2x),
USB-C 4 (2x)
Video connections
HDMI (1x)
Network connections
RJ45 2.5 Gigabit Ethernet (2x),
SFP+ (2x)
Audio Connections
Headphones
Data ports
USB 2.0 Type-A (2x),
USB 3.2 gen 1 type-A (1x),
USB 3.2 Gen 2 Type-A (2x)

Optical drive properties

Optical drive type
No drive

Supplied peripherals

Keyboard
Standard (wireless)

Product dimensions

Length
19.56 cm
Width
18.90 cm
Height
4.80 cm
