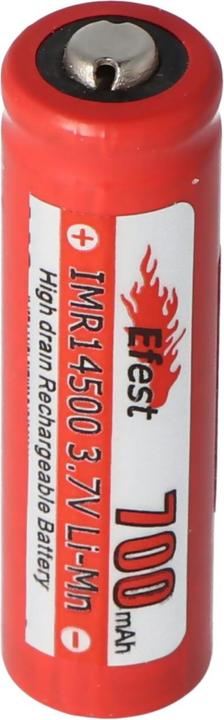

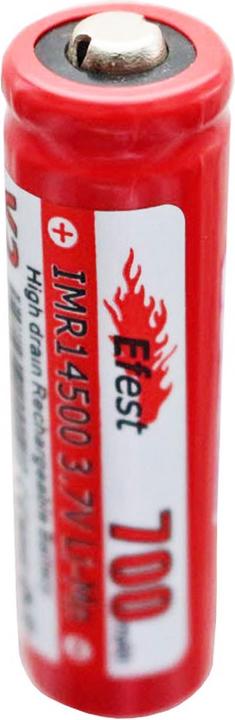

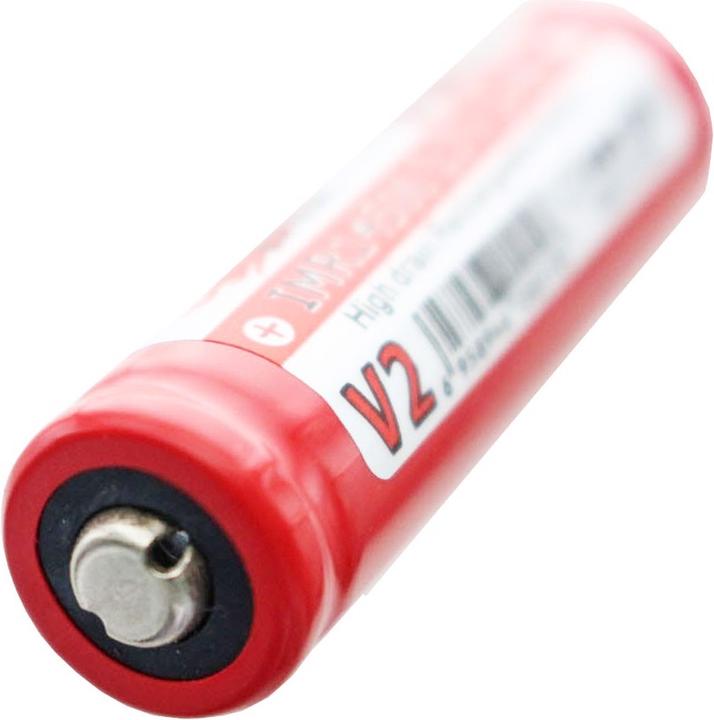

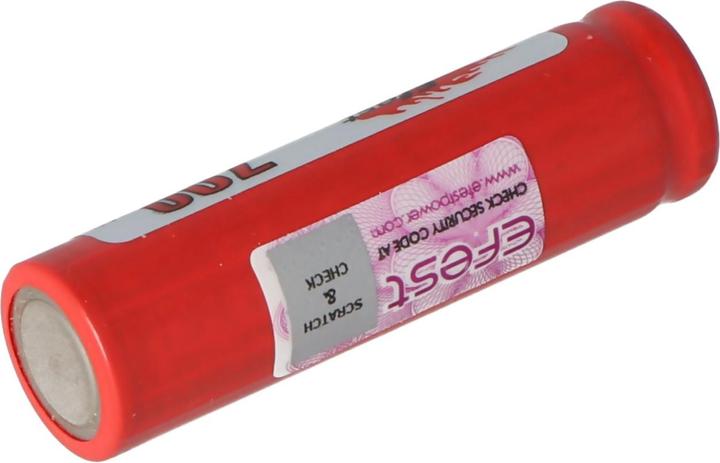

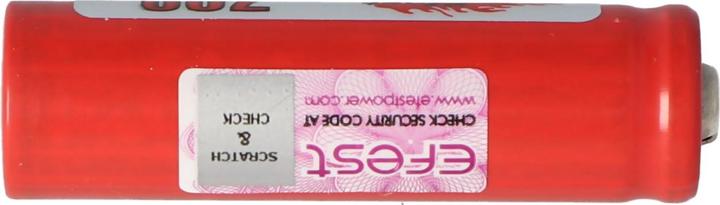

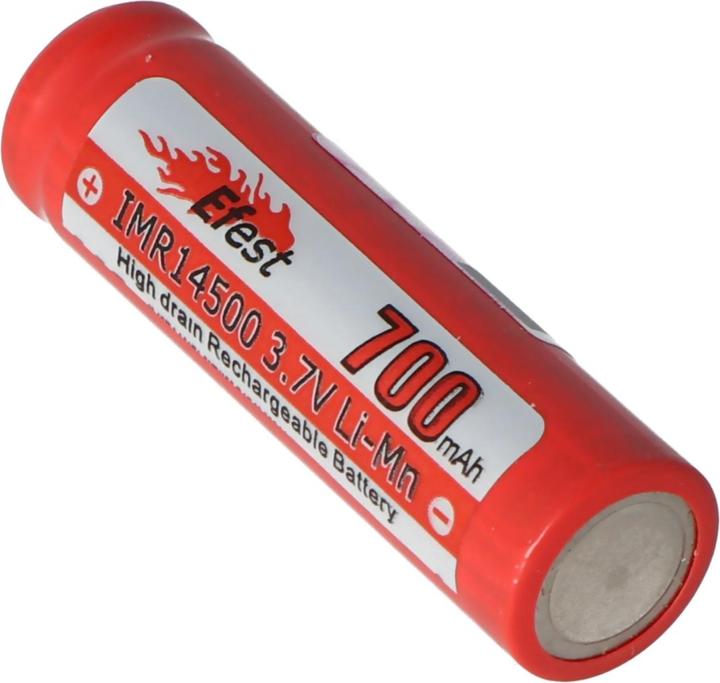

Efest Battery IMR 14500 V2, positive pole raised

The powerful battery cell developed by Efest features lithium-manganese. Manganese does not react with lithium, which gives these cells a high level of intrinsic safety. This cell is specifically designed for battery holders and flashlights.

IMR 14500 V2 Lithium-Ion Battery (Positive terminal raised)
Capacity: 700 mAh
Nominal voltage: 3.7 V
Charge termination voltage: 4.2 V ± 0.05 V
Discharge termination voltage: 2.5 V
Calculated internal resistance: 0.09 Ohm

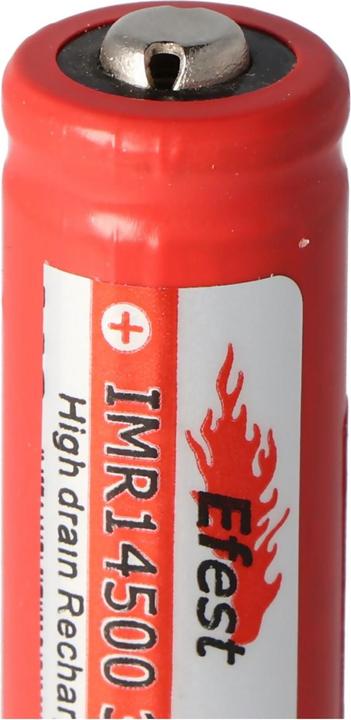

Positive terminal raised (Button Top)
Protection: none
Chemical composition: LiMn (IMR)
Diameter: 14.2 mm ± 0.15 mm
Height: 50.50 mm ± 0.15 mm
Weight: 21 g ± 1 g

Safety instructions: Please note that lithium cells should only be used by qualified personnel. Improper handling or short circuits can lead to fire or explosion.

Additional features: Lithium-ion batteries are thermally stable and do not suffer from memory effect. They operate on the basis of lithium and are characterized by high energy density.

Notes: Charging lithium-ion batteries requires a special charger that charges the batteries using a specific charging method (CCCV = constant current, constant voltage). The batteries must not be charged above a voltage of 4.2 V ± 0.05 V, as this poses a risk of fire and explosion. It is advisable to charge the batteries only up to about 4.1 volts, as this significantly increases their lifespan and number of charge cycles (potentially up to doubling). Only lithium-ion chargers should be used for charging.
