Alfa Network AIT-AX210 - WiFi 6E and Bluetooth 5 card w/ 2x dipole antennas

USB 2.0, PCIe
Currently out of stock

Product details

WiFi 6E and Bluetooth 5 Card with 2x Dipole Antennas

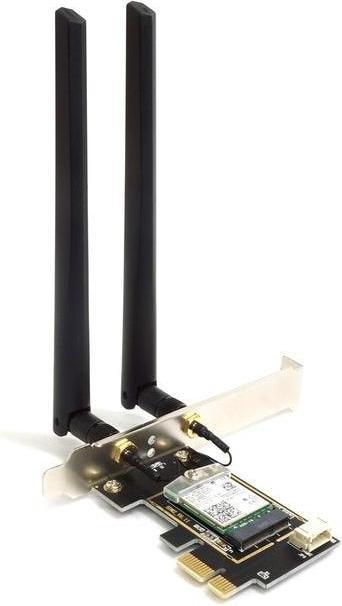

The AIT-AX210 is a WiFi 6E PCIe card based on the Intel AX210 module.

The AIT-AX210 supports the latest WiFi 6E (IEEE 802.11ax) standard with features like OFDMA, 1024QAM, and MU-MIMO. The module also includes Bluetooth 5.2, is backwards compatible, and operates in the 2.4, 5, and 6 GHz bands.

The PCI Express interface allows this card to be used in any desktop PC equipped with a x1, x4, x8, or x16 PCIe slot.

Key specifications:

  • Intel product code: AX210NGW
  • IEEE 802.11 standards: a/b/g/n/ac/ax
  • Special features: OFDMA, 1024QAM, MU-MIMO, TPC/DFS, TWT
  • Frequency: 2.4 GHz, 5 GHz, 6 GHz
  • Data rate: Up to 2.4 Gbps
  • Bluetooth: 5.2 (USB 2.0 cable included)
  • Antenna type: 2x tri-band dipole (5 dBi gain)
  • Antenna connectors (adapter): 2x RP-SMA (pigtail RF cables included)
  • Antenna connectors (module): 2x IPEX4 (MHF4)
  • Interface: 1x PCIe (Wi-Fi); USB 2.0 (Bluetooth)
  • Operating systems: Microsoft Windows 10 and 11; Linux (kernel 5.10 and above)
  • Form factor (adapter): 1x PCI Express (compatible with x1, x4, x8, and x16 slot types)
  • Form factor (module): M.2/NGFF A+E-key 2230

Bundle contents include:

  • 1x Intel AX210NGW module
  • 1x PCIe x1 to M.2/NGFF A+E-key 2230 adapter board
  • 2x dipole antennas with IPEX4 (MHF4) to RP-SMA female pigtail
  • 1x plastic IPEX4 (MHF4) connectors cover
  • 1x USB 2.0 cable for Bluetooth
  • Assembly accessories (screws, etc.).

Key specifications

Network adapter type
WLAN adapter
Item number
41181196

General information

Manufacturer
Category
Manufacturer no.
AIT-AX210
Release date
10.9.2024

Network card properties

Hardware interface
PCIe
USB 2.0
Network adapter type
WLAN adapter

Network connections

Connections
Bluetooth
Wireless transmission
Bluetooth
Wi-Fi

Wi-Fi standard

Wi-Fi standard
Wi-Fi 6 / 802.11ax
Wi-Fi frequency band
Dual band

Mobile internet properties

Max. data transfer rate
2400 Mbit/s

Scope of delivery

Scope of delivery
1x Intel AX210NGW module
1x PCIe x1 to M.2/NGFF A+E-key 2230 adapter board
1x plastic cover for IPEX4 (MHF4) plug
1x USB 2.0 cable for Bluetooth
2x dipole antennas with IPEX4 (MHF4) on RP-SMA socket pigtail
Mounting accessories (screws, etc.)
